5 Port Gigabit POE Switch

PS104G
125 kHz:
13.56 MHz:
Hlasový výstup:
HTTP server:
Micro USB:
Všechny vlastnosti
5 Port Gigabit POE Switch, support IEEE802.3af, for IP Camera
Podrobný popis
kč1.987,00
+ −
Koupit nyní 1 kliknutím
kč1.987,00

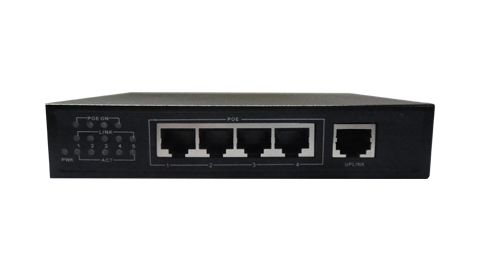

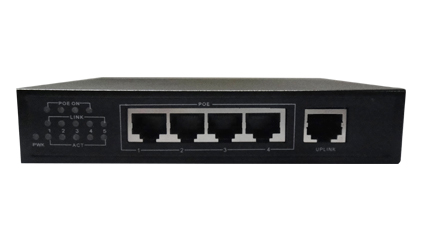

5 Port Gigabit POE Switch PS104G (4 Port PoE Ethernet ports, support IEEE802.3af)

Určeno především pro napájení IP kamer.

Technical specifications:

Input Voltage
48V DC
Network standards
IEEE802.3i 10 BASE-T,
IEEE802.3u 100 BASE-TX,
IEEE802.3x flow control
IEEE802.3af / IEEE802.3at
PoE power
25W per port
Wiring: Data & Power provided over pairs 12&36 and 45(+) & 78(-)
Cable: UTP cat.5 or higher
Processing types
Store-and-forward
Half-duplex back pressure and IEEE802.3x full-duplex flow control
Power supply
Total power consumption: 96W
Total PoE power budget: 90W
Performance spec
Bandwidth: 10Gbps
Network delay(1000M to1000M bps):less than 2ms
Buffer Memory:96KB
LED indicator
System: Power,PoE max
per port: speed, link,,PoE active, PoE failure
Environment Criterion
work temperature: 0℃-40℃
work humidity: 10% 90%, no condensation
Electromagnetism compatibility
CE Class B
FCC Part 15, Class B
VCCI Class B
C-Tick
Product Size:
140*91*28 mm
Security Criterion
CE/LVD

Funkce

125 kHz:
13.56 MHz:
Hlasový výstup:
HTTP server:
Micro USB:
PCMCIA:
RS-232:
RS-232 / PS2:
RS-485:
TCP/IP:
USB:
USB C:
Wiegand:
