miniaturní modul NFC čtečky bezkontaktních čipových karet ACM1252U-Z6

ACM1252U-Z6
125 kHz:
13.56 MHz:
Hlasový výstup:
HTTP server:
Micro USB:
Všechny vlastnosti

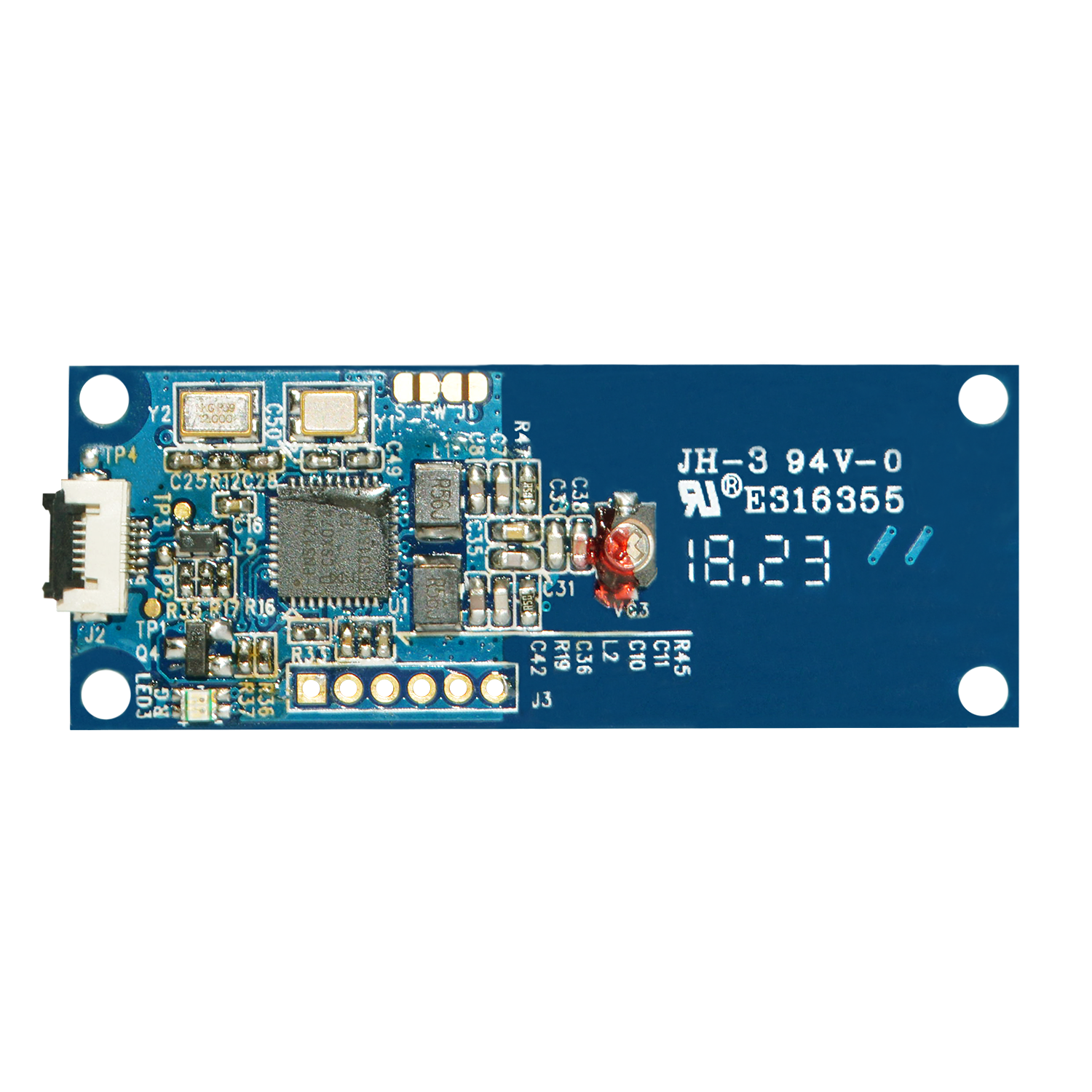

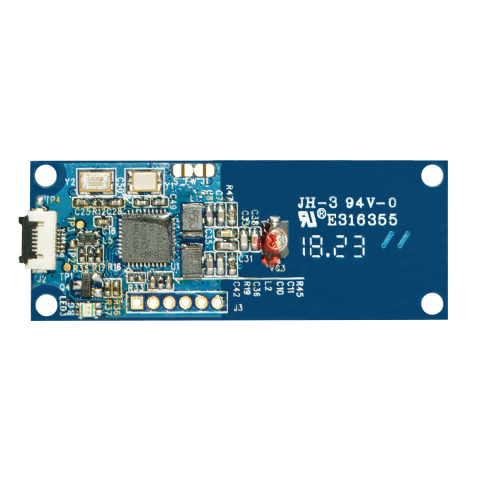

ACM1252U-Z6 modul čtečky bezkontaktních čipových karet, NFC, 13.56 MHz, FFC Connector
Podrobný popis
1.399,00
+
Koupit nyní 1 kliknutím
1.399,00

ACM1252U-Z6 miniaturní modul čtečky bezkontaktních čipových karet, NFC, 13.56 MHz, FFC Connector

Specifikace:

  • USB Full Speed Interface via 6-pin FFC Connector
  • CCID Compliance
  • USB Firmware Upgradeability
  • Smart Card Reader:
    • Contactless Interface:
      • Read/write speed up to 424 kbps
      • Built-in Antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
      • Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
      • Built-in anti-collision feature (only 1 tag is accessed at any time)
      • NFC Support:
        • Card Reader/Writer Mode
        • Peer-to-Peer Mode
        • Card Emulation Mode
  • Built-in Peripherals:
    • User-controllable bi-color LED
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later



  • Physical Characteristics
    Dimensions (mm)52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H)
    Weight (g)3.45 g
    USB Interface
    ProtocolUSB CCID
    Connector Type6-pin FFC
    Power SourceFrom FFC Connector
    SpeedUSB Full Speed (12 Mbps)
    Contactless Smart Card Interface
    StandardISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa®
    ProtocolISO14443-4 Compliant Cards, T=CL
    MIFARE® Classic Card Protocol, T=CL
    ISO 18092, NFC Tags
    FeliCa®
    Antenna20 mm x 22 mm
    Built-in Peripherals
    LED1 bi-color: Red and Green
    Other Features
    Firmware UpgradeSupported
    Certifications/Compliance
    Certifications/ComplianceISO 18092
    ISO 14443
    USB Full Speed
    PC/SC
    CCID
    CE
    FCC
    RoHS
    REACH
    Microsoft® WHQL
    Device Driver Operating System Support
    Device Driver Operating System SupportWindows®
    Linux®
    MAC OS®
    Solaris
    Android™
